Mitsubishi Electric Air Curtains are the perfect way to provide your premises with a comfortable, clean and hygienic environment while saving energy with a quiet, efficient and powerful operation.
The Air Curtain not only insulates temperature efficiently (i.e. preventing loss of cool air during cooling and heat loss during heating) it can protect your premises from unpleasant elements found in the external environment.

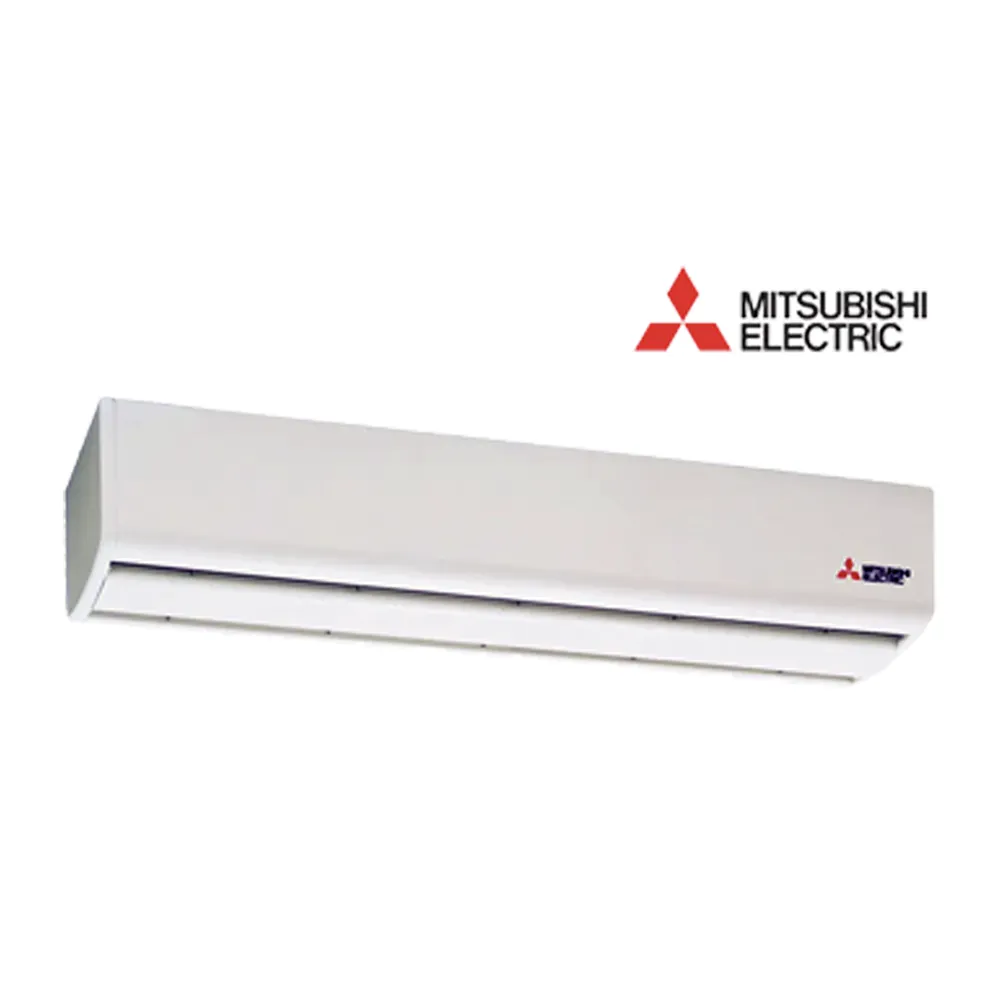

Mitsubishi GK Series Commercial Air Curtain Specification
- Max mounting height 3.0m. (GK3009–900 & GK3012–1200)
- Max mounting height 3.5m. (GK3509–900 & GK3512–1200)
- Twin Nozzle Design: Provides optimal air velocity and improved performance.
- Quiet and compact: A sleek design that fits tight spaces without compromising airflow.
| MODEL |
LENGTH |
VOLTAGE/HZ |
INPUT POWER |
WEIGHT |
AIR VOLUME |
SOUND |
| GK3009AS |
900mm |
240/50 |
76–105W |
11kg |
455 l/s |
50dB |
| GK30012AS |
1200mm |
240/50 |
95–125W |
14kg |
540 l/s |
52dB |
| GK3509SA |
900mm |
240/50 |
155–223W |
22kg |
583 l/s |
58dB |
| GK3512SA |
1200mm |
240/50 |
187–267W |
29kg |
733 l/s |
59dB |
Features & Benefits:
- Sustains Temperature: In a cold-storage facility without an Air Curtain, the temperature inside increases from -5 to 4ºC in as little as two minutes. If an Air Curtain is used, this time is extended to about 10 minutes, or approximately five times as long. Tests show that when an Air Curtain was used, 50% less energy was required to reduce the inside temperature to -5ºC.
- Keep Out Dust/ Insects/ Odours: Keeps out dust, insects, and noxious odours. Helping maintain a pleasant environment.
- Quiet Propeller Design: The hydromechanical technology applied to Mitsubishi Electric’s quiet fan provides substantial airflow with low noise. Our quiet fan has achieved significant improvements in energy efficiency and operation cost compared to the previous model using a line flow fan.
- Twin Nozzle: The twin nozzle design allows the Air Curtain to generate larger air velocity distribution with less air intake. Resistance to the influence of external airflow has been strengthened considerably improving insulation against heat and cold.
- Easy Maintenance: The use of the axial fan (quiet propeller design) makes the unit easier to maintain and keep the unit in top condition at all times. Additionally, an improvement resulted from a change of fan, from line flow fan to axial flow fan extends the lifespan of the unit.
- Flexible Installation: The airflow angle can be adjusted both internally and externally. The unit can be installed vertically or horizontally according to the available space.
